Redline SM-7008 8 Kanal XVR Kayıt Cihazı

Redline SM-7008 8 Kanal XVR Kayıt Cihazı

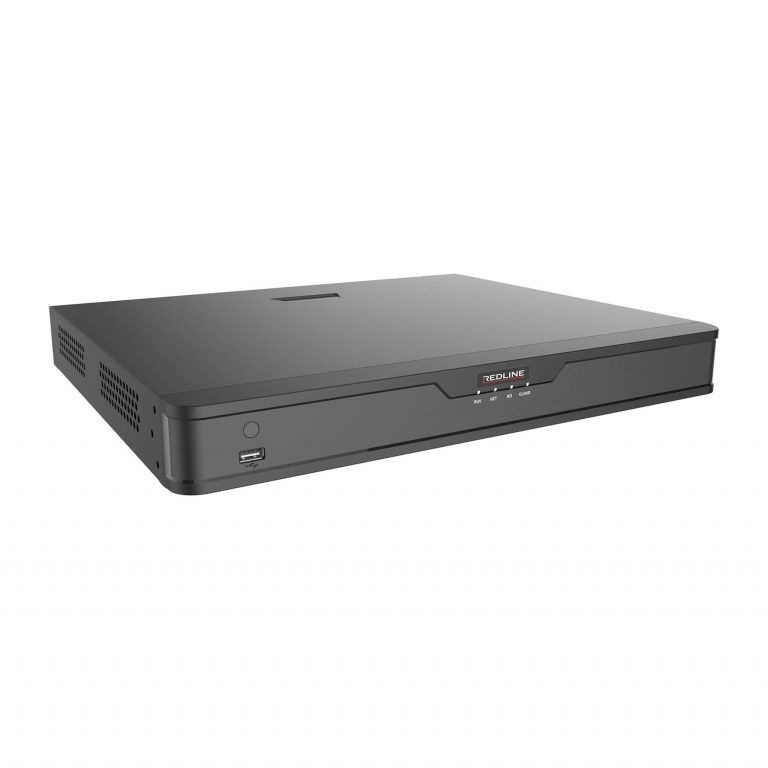

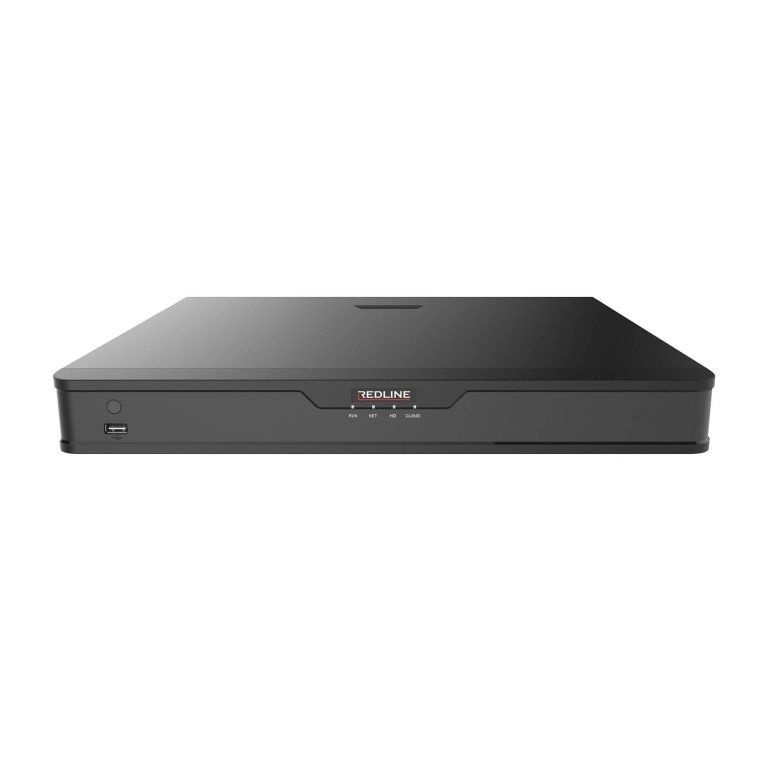

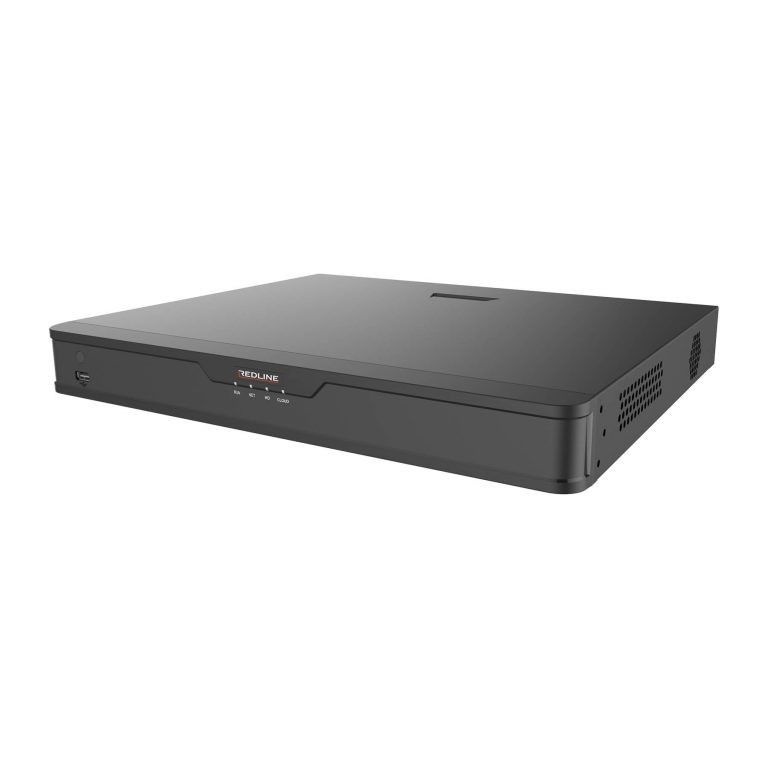

Ürün Adı: Redline RT-7008 8 Kanal XVR Kayıt Cihazı

Ürün Bilgisi

Analog Video Input

8-ch, BNC

IP Video Input

8-ch(only IP up to 8ch), each channel up to 4MP

Supported Analog Camera Types

Support AHD input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input

Audio Input

1-ch, RCA

Two-way Audio

1-ch, RCA

Incoming Bandwidth

48Mbps

Outgoing Bandwidth

60Mbps

Remote Users

128

Protocols

TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE

VGA Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

HDMI Output

1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz

Audio Output

1-ch, RCA

Synchronous Playback

8-ch

Recording Resolution

5MP Lite/4MP Lite /1080P/720P/4CIF/CIF

Recording Frame Rate

Main stream: 5MP Lite@6fps 4MP Lite@8fps 2MP Lite@15fps 2MP@8fps 720P@15fps Sub stream: D1@30fps(Max)

SATA

1 SATA interface

Capacity

Up to 6TB for each HDD

Network Interface

1RJ45 10M/100M self-adaptive Ethernet Interface

USB Interface

Rear panel:2 x USB2.0

Power Supply

12V DC Power Consumption: ≤ 8 W ( without HDD )

Dimensions(W×D×H)

255mm ×215mm× 42mm (10.0" × 8.5"×1.7")

Weight ( without HDD )

≤1.1 Kg ( 2.42lb
